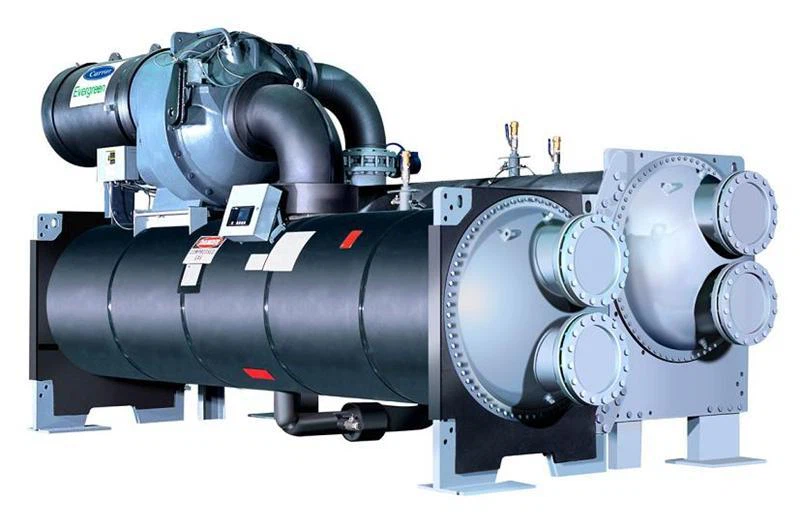

Tus cab hlau 19xr Chiller

Cov 19xR Chiller Series Centrifugal Chiller yog qhov siab - Kev ua num, txhim khu kev ua haujlwm tub yees, thiab cov khoom siv tub yees txhim kho, thiab cov ntawv thov tub yees loj. Nrog kev qhia ntxiv txog kev ua haujlwm siab, cov suab nrov qis, thiab ua kom zoo tshaj plaws hauv kev tawm tsam thev naus laus zis, ua kom zoo tshaj plaws rau kev lag luam, kev lag luam infrastrastructure. Nws yog tshwj xeeb tsim rau siv nrog HFC - 134a chlorine-dawb tub yees, kom nws ntsib ib puag ncig ib puag ncig.

Xa kev nug

Ces

Hauj lwm lawm

19XR ChillerIb yam dhau ib yamqhov tseem ceebNta

Hauv Tshuag npaj rau nkoj

1. Zog Txuag & Efficievievieviency

Sing -} theem Compressor:Siv cov raj tsim lub diffuser thiab cov cab kuj tus patented rotatable diffuser qauv (SRD) kom enhAnce Compressor efficiency, txhim kho cov txheej txheem kev ua haujlwm tag nrho.

Ob {- theem Compressor:Lub yeeb yames ib tug vuaj vataber tsim thiab yog nruab nrog ib nrab accompizer, uas booSts chav ua haujlwm tau zoo, ua rau nws zoo rau high - nqa daim ntawv thov.

Ultra -} TSHAV CUA KUB HLOOV HLOOV RAJ:Cov tsheb thauj khoom muaj cov raj tshav kub hloov tshiab txo thiab txhim kho kev hloov kho cua sov, txuas ntxiv txhim kho chav ntsuas lub zog ua haujlwm.

2. Ruaj khov & txhim khu kev qha ua haujlwm

High - Lub Cev Muaj Zog: Tnws semi -} Phaj siab high- Lub cev muaj zog ua kua rau tub yees ua kua txias, uas ua rau tusLub cev muaj zog kub qis dua, ua rau muaj kev ua haujlwm ntau dua.

Tsim nrog tsawg dua txav chaw:Cov Chiller yog tsim nrog qhov tsawg kawg nkaus tsiv chaw, ua kom ruaj khov, txhim khu kev qha ua haujlwm nrog txo qis muaj kev sib tw ntawm kev ua haujlwm tsis ua haujlwm.

Txhim kho nruj:UNique ob npaug -} qhov cub raj phaj tsim tsimOaves lub connaCULT TAWM BEtween lub tooj liab leeg thiab cov raj phaj yas, txo qhov kev pheej hmoo ntawm cov txov.

3. Ntau txoj kev pib

Tus19xR Chiller OFFERs yooj yim hauv kev xaiv pib, suav nrog:

Tsawg - voltage oob khab oob khab (380V): Tsis {- airborne hnub qub - edta oob khab txee raws tus qauv.

Lwm cov duab duab oob khab: Xaiv xws li Airborne lub hnub qub - delta, cov khoom thiab siab -}}}}}}}}}}}}} kawg customization) muaj rau kev customization ntau dua.

4. Yooj yim rau kev khiav lag luam

Carrier Smartview ® cov neeg ntse tswj qhov system:Tus neeg siv no - Tus phooj ywg zoo system muaj cov haujlwm ua haujlwm yooj yim, muab qhov kev paub siv neeg siv yooj yim thiab intuitive txaus siab thiab txawj xav tau. Nws suav nrog kev soj ntsuam kev soj ntsuam ntse kom tiv thaiv cov chav tsev thiab kuaj mob sai sai ntawm cov teeb meem kev ua haujlwm.

Kev sib koom ua ke nrog lub tsev tswj cov tshuab:Lub kaw lus tuaj yeem sib txuas nrog kev tswj hwm lub tsev, tso cai rau kev tswj hwm thiab saib xyuas chaw taws teeb.

Hom tub yees	R - 134a (chlorine-dawb)
Cua txias muaj peev xwm (tib - theem)	300 - 1650 rt
Cua txias muaj peev xwm (ob - theem)	600 - 3400 rt
CUA TXIAS Muaj Peev Xwm (Series Txee Flow System)	1000 - 6800 rt

Daim ntawv thov

Lub Chiller Series Centrifugal yog qhov zoo tagnrho rau ntau yam loj ntawm cov loj- shad}}} pa shoudors xav tau hla cov sib txawv, suav nrog:

Cov Vaj Tse Loj

Khw Khw, Chaw Ua Haujlwm Chaw Ua Haujlwm, thiab lwm qhov chaw lag luam loj uas yuav tsum muaj peev xwm thiab txhim khu kev qha txias.

Vaj tse

Cov tsev qiv ntawv, tsev cia puav pheej, chaw ua haujlwm, thiab lwm qhov chaw pej xeem uas xav tau kev tswj hwm huab cua zoo sib xws.

Cov Chaw Teev Khoom

Ib puag ncig Qhov ntsuas qhov kub thiab txias

Tsheb thauj mus los rau pej xeem

Tshav dav hlau, chaw nres tsheb ciav hlau, thiab chaw nres tsheb ciav hlau uas xav tau loj - teev cov tshuab cua txias rau cov chaw siab.

Kev Kawm thiab Chaw Kho Mob

Cov tsev kawm, tsev kho mob, thiab lwm cov tsev uas xav tau ib puag ncig zoo thiab muaj cov neeg ua haujlwm.

Chaw ntiav pw & Kev tos txais

Muab cov huab cua zoo rau cov qhua thiab ua kom muaj zog txuag hluav taws xob hauv cov haujlwm loj hauv loj.

chaw ua uas tsis tau haus

CUA - cua txias (380V-3D-50Hz)
Hom	Iav chiller				Lub cav		Evaporator			Condenser			Chav deg			Qho hnyav
	Lub peev xwm cua txias		Cov Khoom Siv Hluav Taws Xob	Tag Nrho Load Copr	Ntau	Lrya	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Qho ntev	Qhov dav	Qhov siab	Kev ua hauj lwm	Rigging (w / o Tub yees)	Lub tub yees Them
	kw	Tons yog li tons	kw	ikw / kw	A	A	l/s	kpa	lub hli	l/s	kpa	lub hli	lub hli	lub hli	lub hli	kg	kg	kg
19xR-313234HueU52	1407	400	253.2	0.180	435.8	1046	67.20	107	Dn200	79.90	77.8	Dn200	4181	1670	2051	6965	6046	396
19XR-404035huft52	1583	450	288.4	0.182	496.2	1119	75.60	77.9		90.10	70.8		4359	1880	2130	8097	6808	483
19xR-414138Hugu52	1758	500	310.0	0.176	525.4	1176	84.00	78.1		99.60	70.0		4359	1880	2130	8386	7004	508
19XR-505138Hugt52	1934	550	337.5	0.175	569.3	1176	92.40	71.3		109.4	46.6	DN250	4394	1994	2137	9488	7788	609
19XR-5P52436LCH52	2110	600	377.5	0.179	651.9	1222	100.8	68.8		119.7	48.5		4460	2054	2207	10225	8603	493
19XR-5051c37VCE52	2110	600	358.1	0.170	611.4	1143	100.8	83.5		118.7	54.1		4393	2098	2421	11227	9432	704
19XR-5P50C39VEG52	2286	650	408.4	0.179	708.6	1556	109.2	79.7		129.4	73.5		4393	2098	2421	10865	9217	588
19xR-5052C35VDG52	2286	650	387.5	0.170	668.4	1457	109.2	96.6		128.5	55.2		4393	2098	2421	11382	9553	704
19xR-5P50C49VEv52	2462	700	435.5	0.177	750.3	1556	117.6	91.4		139.0	83.8		4393	2098	2421	10865	9217	588
19XR-5151C451C45VEG52	2462	700	413.8	0.168	716.9	1556	117.6	92.7		138.2	71.4		4393	2098	2421	11474	9602	739
19xR-5P51C49VFJ52	2638	750	467.7	0.177	804.3	1570	126.0	104		149.1	82.1		4393	2098	2421	11035	9351	588
19xR-5252C69VOTE52	2638	750	439.4	0.167	756.2	1556	126.0	95.3		147.8	71.3		4393	2098	2421	11711	9759	761
19XR-5R52C49VGJ52	2813	800	494.3	0.176	849.5	1845	134.4	98.0		158.8	81.2		4393	2098	2421	11371	9579	619
19xR-6x65C65VFG52	2813	800	469.7	0.167	807.5	1570	134.4	86.9	DN250	157.8	79.3		4940	2148	2637	12810	10677	714
19XR-6Z67C87VGG52	3165	900	523.5	0.165	895.2	1845	151.2	90.2		177.4	80.1		4940	2148	2637	13334	11034	752
19xR-6ZR9C09V5V52	3517	1000	588.7	0.167	988.5	2083	168.1	109		197.4	90.3		4940	2148	2637	13441	11108	752
19XR-7Q72CH29VHJ52	3869	1100	650.6	0.168	1088.4	2083	184.9	89.5	Dn300	217.2	76.4	Dn300	5051	2472	2743	17215	14095	987
Xyoo 19xR-7Q72E53meb52	4220	1200	736.1	0.174	1250.3	2729	201.7	105	Dn300	238.0	90.4	Dn300	5045	2426	2889	18522	15344	1046
19xR-8p81E51Meb52	4220	1200	696.9	0.165	1186.4	2729	201.7	72.6	DN350	236.3	69.2	DN350	5121	2711	2937	21060	17195	1156
19xR-8P80E63MFB52	4572	1300	799.1	0.175	1358.3	3276	218.5	84.0		257.8	92.4		5121	2711	2937	20861	17071	1156
19xR-8Q81E61MFB52	4572	1300	766.0	0.168	1304.1	3276	218.5	72.6		256.4	80.3		5121	2711	2937	21404	17418	1200
19XR-8282E63MFB52	4924	1400	828.1	0.168	1405.7	3276	235.3	98.9		276.3	82.1		5121	2711	2937	22435	18145	1426
19xR-8R84E63MFB52	5275	1500	909.5	0.172	1537.7	3276	252.1	83.4		297.1	76.7		5121	2711	2937	22421	18083	1247
19xR-8484E63MFB52	5275	1500	884.9	0.168	1497.9	3276	252.1	104		296.0	76.2		5121	2711	2937	22997	18549	1386

Brine daim ntawv thov (10KV-3D-50Hz)
Tus qauv	Iav chiller				Lub cav		Evaporator			Condenser			Chav deg			Qho hnyav
	Cua txias Lub peev xwm		Ntxiv rau Hwjchim	Tas Nrho Load Ua tau zoo	Ntau	Lrya	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Qho ntev	Qhov dav	Qhov siab	Kev ua hauj lwm	Rigging (w / orafigwd)	Tub yees
	kw	Tons yog li tons	kw	ikw / kw	A	A	l/s	kpa	lub hli	l/s	kpa	lub hli	lub hli	lub hli	lub hli	kg	kg	kg
19XR-7072E45MDE5A	2462	700	599.7	0.244	41.2	221	158.0	129	Dn300	210.2	72.4	Dn300	5045	2426	2889	19307	16050	1192
19XR-7R74E55MFE5AA	2813	800	696.6	0.248	47.3	235	180.6	95.6	Dn300	240.7	87.8	Dn300	5045	2426	2889	19302	15990	1082
19XR-8R84E65MFE5A	3165	900	776.6	0.245	52.9	235	203.2	72.4	DN350	270.5	65.0	DN350	5121	2711	2937	22794	18456	1247
19XR-8787E65MFE5AA	3517	1000	835.2	0.237	57.0	235	225.8	135	DN350	298.6	105	DN350	5731	2711	2937	24501	19784	1592
Nco tseg:	1. Cov kev xaiv saum toj no yog nce raws li kev nkag / tawm mus chilled dej kub: 12/7 degree; Nkag mus / tawm hauv cov dej txias txias: 32/37 degree. Txias fouling factor yog 0.0176 ㎡ Degree / KW thiab Condenser Fouling Qhov Muag yog 0.044 ㎡ Degree / KW. 2. Qhov kev xaiv brine saum toj saud yog raws li kev nkag / tawm hauv dej txias txias: -2 / -6 degree; Nkag mus / tawm hauv cov dej txias txias: 30 / 33.5 degree. Txias fouling factor yog 0.0176 ㎡ Degree / KW thiab Condenser Fouling Qhov Muag yog 0.044㎡ Degree / Kw, 25% Glycol. 3. Tus cab kuj yuav xaiv cov qauv tshwj xeeb uas siv lub khoos phis tawm ntawm cov kev thov sib txawv rau tonnage, nqa, thiab kev ua tau zoo. Xav paub cov ntsiab lus, thov hu rau cov chaw lis haujlwm hauv nroog. 4. Cov qauv dej hauv dej siab yog 1.0MPA, thiab tuaj yeem muab 1.6MPA, 2.0MPA raws li kev xaiv; Yog xav tau ntau ntxiv, thov hu rau cov chaw hauv nroog. 5. Qhov kev xaiv saum toj no tau ua raws li cov hluav taws xob yog 380V / 10KV. Yog xav paub cov ntsiab lus lossis kev xaiv customized, thov hu rau cov chaw hauv nroog. {{0 {0} Hz Xaiv} HZ kuj muaj. Thov hu rau cov chaw lis haujlwm hauv nroog kom tau txais kev txhawb nqa ntxiv.

Huab cua - cua txias (10kv-3D-50Hz)
Hom	Iav chiller				Lub cav		Evaporator			Condenser			Chav deg			Qho hnyav
	Lub peev xwm cua txias		Cov Khoom Siv Hluav Taws Xob	Tag Nrho Load Copr	Ntau	Lrya	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Qho ntev	Qhov dav	Qhov siab	Kev ua hauj lwm	Rigging (w / o Tub yees)	Lub tub yees Them
	kw	Tons yog li tons	kw	ikw / kw	A	A	l/s	kpa	lub hli	l/s	kpa	lub hli	lub hli	lub hli	lub hli	kg	kg	kg
19XR-6Y69C89LHG5A	3165	900	531.5	0.168	36.4	200	151.20	98.8	DN250	177.80	74.5	DN250	4940	2148	2685	14037	11750	735
19XR-7P72C09LHG5A	3517	1000	589.5	0.168	39.9	200	168.10	89.7	Dn300	197.50	64.1	Dn300	5051	2472	2790	17669	14654	949
19xR-7P71E53mdb5a	3869	1100	680.1	0.176	45.3	221	184.90	107		218.40	88.5		5045	2426	2889	18549	15546	1007
19xR-7171E51mdb5a	3869	1100	635.9	0.164	42.4	221	184.90	106		216.4	86.9		5045	2426	2889	19367	16050	1251
19xR-7Q72E53Mfb5a	4220	1200	733.8	0.174	48.4	235	201.7	105		237.9	90.3		5045	2426	2889	18960	15782	1046
19xR-8P81E51MFB5A	4220	1200	695.3	0.165	45.8	235	201.7	72.6	DN350	236.2	69.1	DN350	5121	2711	2937	21498	17633	1156
19xR-8P80E63MFB5A	4572	1300	797.1	0.174	52.7	235	218.5	84		257.7	92.3		5121	2711	2937	21234	17444	1156
19xR-8Q82E61MFB5A	4572	1300	758.8	0.166	50.1	235	218.5	72.6		256.2	71.4		5121	2711	2937	22041	17980	1200
19xR-8P81E63MFB5A	4924	1400	860.2	0.175	57.1	235	235.3	96.2		277.6	93		5121	2711	2937	21498	17633	1156
19xR-8282E63MFB5A	4924	1400	826.2	0.168	54.7	235	235.3	98.9		276.2	82.1		5121	2711	2937	22808	18518	1426
19xR-8R84E63MFB5A	5275	1500	907.5	0.172	60.3	235	252.1	83.4		297.1	76.7		5121	2711	2937	22794	18456	1247
19xR-8QV4F30MFT5A	5275	1500	882.0	0.167	57.9	285	252.1	82.3	DM400	296.1	66.3	DM400	5195	2926	3082	24160	19833	1098
19xR-8QV4F40WHT5A	5627	1600	936.1	0.166	60.5	409	268.9	93.2		315.5	74.4		5195	2926	3082	24428	20102	1098
19xR-8RV4F40UJT5AA	5979	1700	994.4	0.166	64.9	479	285.7	90.7		335.1	83.1		5195	2926	3082	24801	20358	1141
19xR-8ZV8F50WJT5A	6330	1800	1058	0.167	68.9	479	302.5	112		355.1	118		5805	2926	3082	26210	21443	1280
19xR - A4FA47638GP7	6682	1900	1116	0.167	73.4	374	319.3	94.3		374.7	81.6		5229	3051	3484	33012	27335	1321
19xR - A4FA47648GP7	7034	2000	1186	0.169	78	374	336.1	104		394.9	89.8		5229	3051	3484	33012	27335	1321
19xR - A6FB66648gQ7	7385	2100	1200	0.162	79.2	430	352.9	127		413.0	83.7	DN450	5839	3186	3484	36913	29922	1650
19XR - A6GB66648GQ7	7737	2200	1261	0.163	83	430	369.7	122		432.7	91.1	DN450	5839	3186	3484	37267	30111	1706
19xR - b6fc65718ru7	8089	2300	1286	0.159	85.2	550	386.5	97.0	DN450	450.7	71.5	DM500	5969	3658	3742	48871	40146	1908
19xR - b6fc65710ru7	8440	2400	1340	0.159	88.6	550	403.3	105		470.2	77.2		5969	3658	3742	48871	40146	1908
19xR - b6gc65720Ru7	8792	2500	1402	0.159	92.6	550	420.1	94.5		490.3	83.3		5969	3658	3742	49424	40473	1939
19xR - b6gc66720Ru7	9144	2600	1438	0.157	94.9	550	436.9	102		509.2	75.5		5969	3658	3742	50247	40989	1939
19xR - C6FC66720Ru7	9496	2700	1501	0.158	98.9	550	453.7	81.3		528.6	80.8		6019	3798	3813	53502	43670	2082
19xR - C6FC66730ru7	9847	2800	1563	0.159	102.8	550	470.5	87.2		548.8	86.5		6019	3798	3813	53502	43670	2082
19xR - C6FC677330ru7	10199	2900	1597	0.157	104.9	550	487.3	93.3		567.6	78.7		6019	3798	3813	54361	44204	2082
19xR - C6FC67730rv7	10551	3000	1666	0.158	109.7	555	504.2	99.6		587.1	83.7		6019	3798	3813	54361	44204	2082

Daim Ntawv Thov Cua Sov (10KV-3D-50Hz)
Tus qauv	Iav chiller				Lub cav		Evaporator			Condenser			Chav deg			Qho hnyav
	Tso kev sov Lub peev xwm		Ntxiv rau Hwjchim	Tas Nrho Load Ua tau zoo	Ntau	Lrya	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Ntws Tus nqi	Nyem Poob	Ywg dej Kev sib txua	Qho ntev	Qhov dav	Qhov siab	Kev ua hauj lwm	Rigging (w / orafigwd)	Tub yees
	kw	Tons yog li tons	kw	ikw / kw	A	A	l/s	kpa	lub hli	l/s	kpa	lub hli	lub hli	lub hli	lub hli	kg	kg	kg
19xR-7071E35MFD5A	3517	1000	696.1	0.198	45.9	235	134.6	73.6	Dn300	170.0	54.4	Dn300	5045	2426	2889	18947	15760	1192
19XR-7072E35MFD5A	3869	1100	759.2	0.196	50.1	235	148.4	87.7		187.0	56.6		5045	2426	2889	19208	15951	1192
19xR-7172E37MFD5A	4220	1200	872.4	0.207	57.9	235	159.8	82.8		203.5	66.1		5045	2426	2889	19529	16142	1251
Xyoo 19XR-7274E45MFD5A	4572	1300	889.3	0.195	59.1	235	175.7	86.2		221.0	72.6		5045	2426	2889	19894	16369	1300
19XR-8284E45MHD5A	4924	1400	952.1	0.193	63.2	294	189.5	67.6	DN350	237.5	49.5	DN350	5121	2711	2937	23343	18898	1426
Nco tseg:	1. Cov kev xaiv saum toj no yog nce raws li kev nkag / tawm mus chilled dej kub: 12/7 degree; Nkag mus / tawm hauv qhov dej txias txias: 32/37 degree. Txias fouling factor yog 0.0176 M² Degree / KW thiab Condenser Fouling Qhov Muag yog 0.044 ㎡ Degree / KW. 2. Cov kev xaiv cua rau saum toj no yog baed ntawm nkag mus / tawm mus chilled dej kub 10/5 degree; nkag mus / tawm hauv dej txias dej 40/45℃.cooler fouling factor yog 0.0176 M² Degree / KW thiab Condenser Fouling Qhov Muag yog 0.044 ㎡ Degree / KW. 3. Tus cab kuj yuav xaiv cov qauv tshwj xeeb uas siv lub khoos phis tawm ntawm cov kev thov sib txawv rau tonnage, nqa, thiab kev ua tau zoo. Xav paub cov ntsiab lus, thov hu rau cov chaw lis haujlwm hauv nroog. 4. Cov qauv dej hauv dej siab yog 1.0MPA, thiab tuaj yeem muab 1.6MPA, 2.0MPA raws li kev xaiv; Yog xav tau ntau ntxiv, thov hu rau cov chaw hauv nroog. 5. Qhov kev xaiv saum toj no tau ua raws li cov hluav taws xob yog 10kv. Yog xav paub cov ntsiab lus lossis kev xaiv customized, thov hu rau cov chaw hauv nroog. {{0 {0} Hz Xaiv} HZ kuj muaj. Thov hu rau cov chaw lis haujlwm hauv nroog kom tau txais kev txhawb nqa ntxiv.

Cov 19xr chiller series centrifugal chiller sawv tawm raws li lub zog, zog {}}} kev ntsuas tub yees. Nrog nws cov thev naus laus zis siab, cov suab nrov tsis muaj suab npe, nws yog qhov kev xaiv teeb meem zoo tshaj plaws rau kev lag luam siab-} Kev ua kom txias. Txawm hais tias koj tab tom tsim kho cov cuab yeej tshiab lossis kho cov txheej txheem uas twb muaj lawm, xyoo 19xr series muaj kev ua tau zoo, ua tau zoo, thiab kev ntseeg tau koj xav tau.
